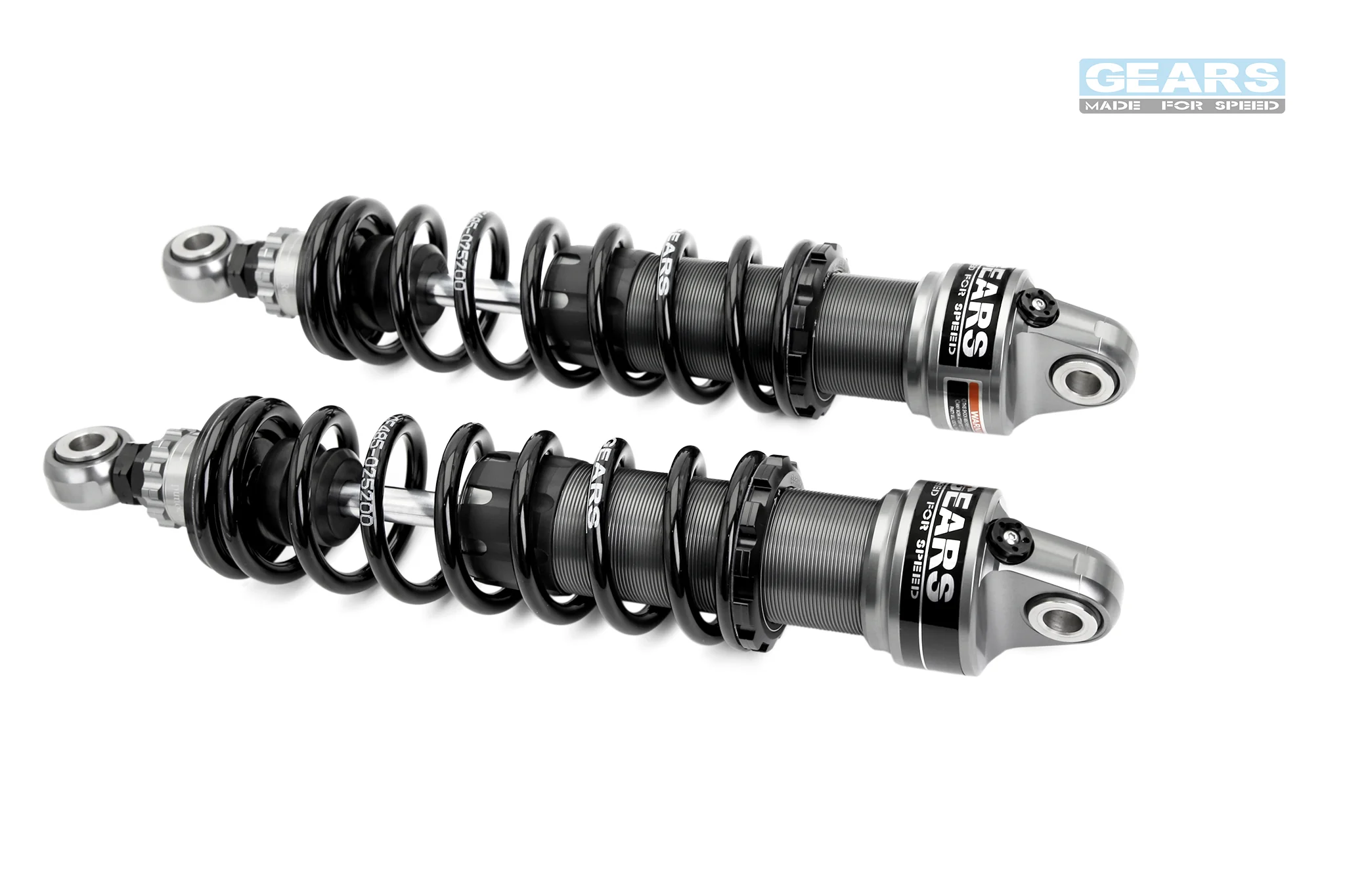

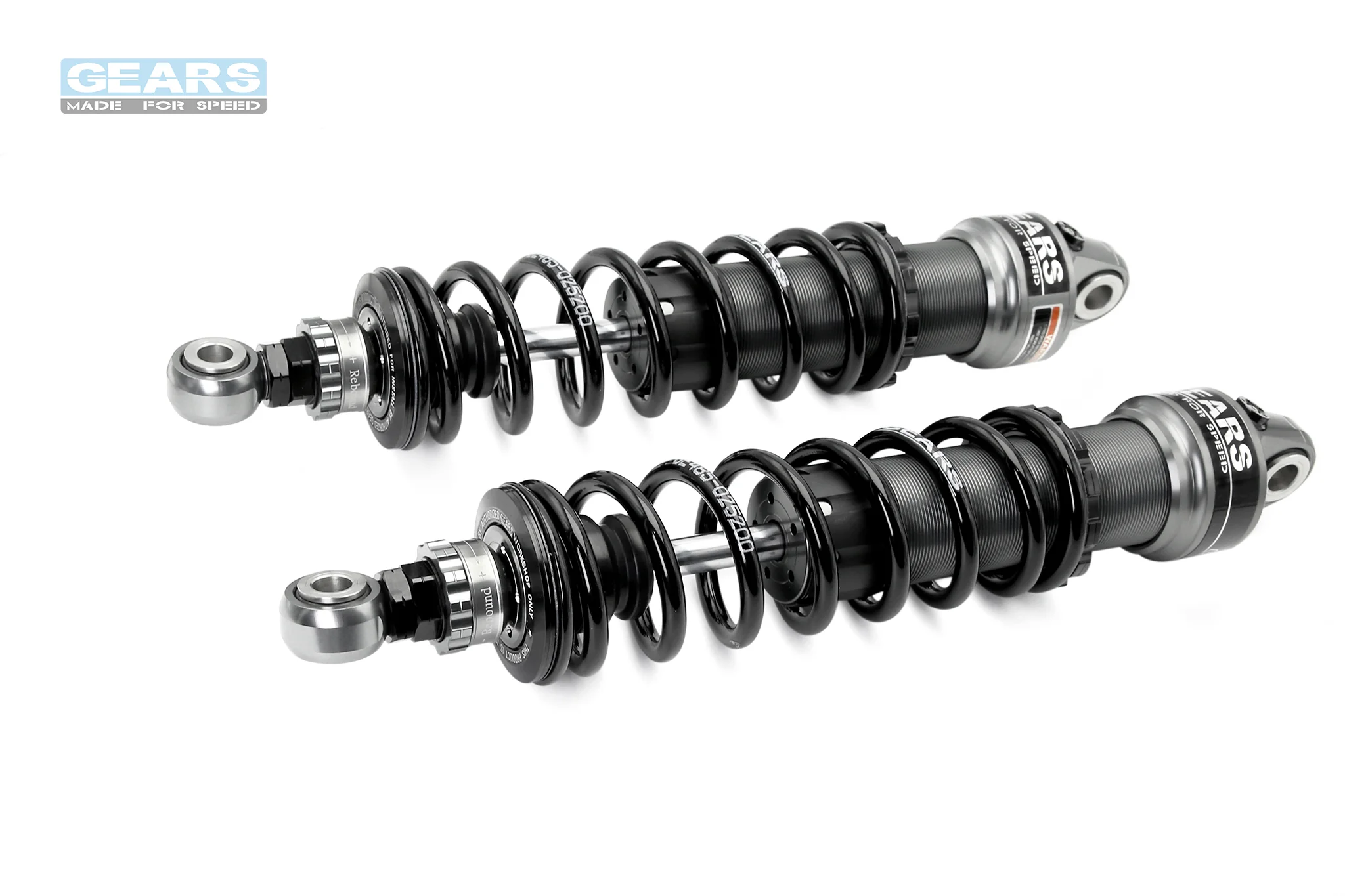

MOTO GUZZI V7 II Series (16~) EV Rear Suspension

Extra Volume series

• Monotube Oil & Gas Separator Design:

Monotube design holds a larger volume of fluid and allows for a separate gas chamber. The separator design also eliminates cavitation caused by the mixture of oil and gas. This allows for stable continuous damping throughout the different performance settings.

• Active Valve Piston:

Wide range valve piston helps the simple harmonic motion control function for extra comfort even on the toughest road conditions.

• Spring Preload Adjustment + Internal Gas Chamber:

Spring preload adjustability provides the user the ability to set their desired riding preference. This combines with the internal gas chamber to sub-support the spring compression??¢s wider range of settings with easy adjustments.

• Rebound Adjustment:

15 clicks of adjustable rebound allow the rider to fine tune their desired suspension damping settings.

• Extra Volume Compressed Air:

Gears??innovative extra volume fluid and gas separator design allows for a greater volume of oil and high-pressured gas to assist the shock, effectively absorbing impacts while still maintaining great comfort and control.

• Height Adjustable:

Some applications allow for height adjustment (*Maximum 5mm).

• Warranty:

All EV shocks are covered by a 12 month limited warranty from the original date of purchase. （Taiwan Only)

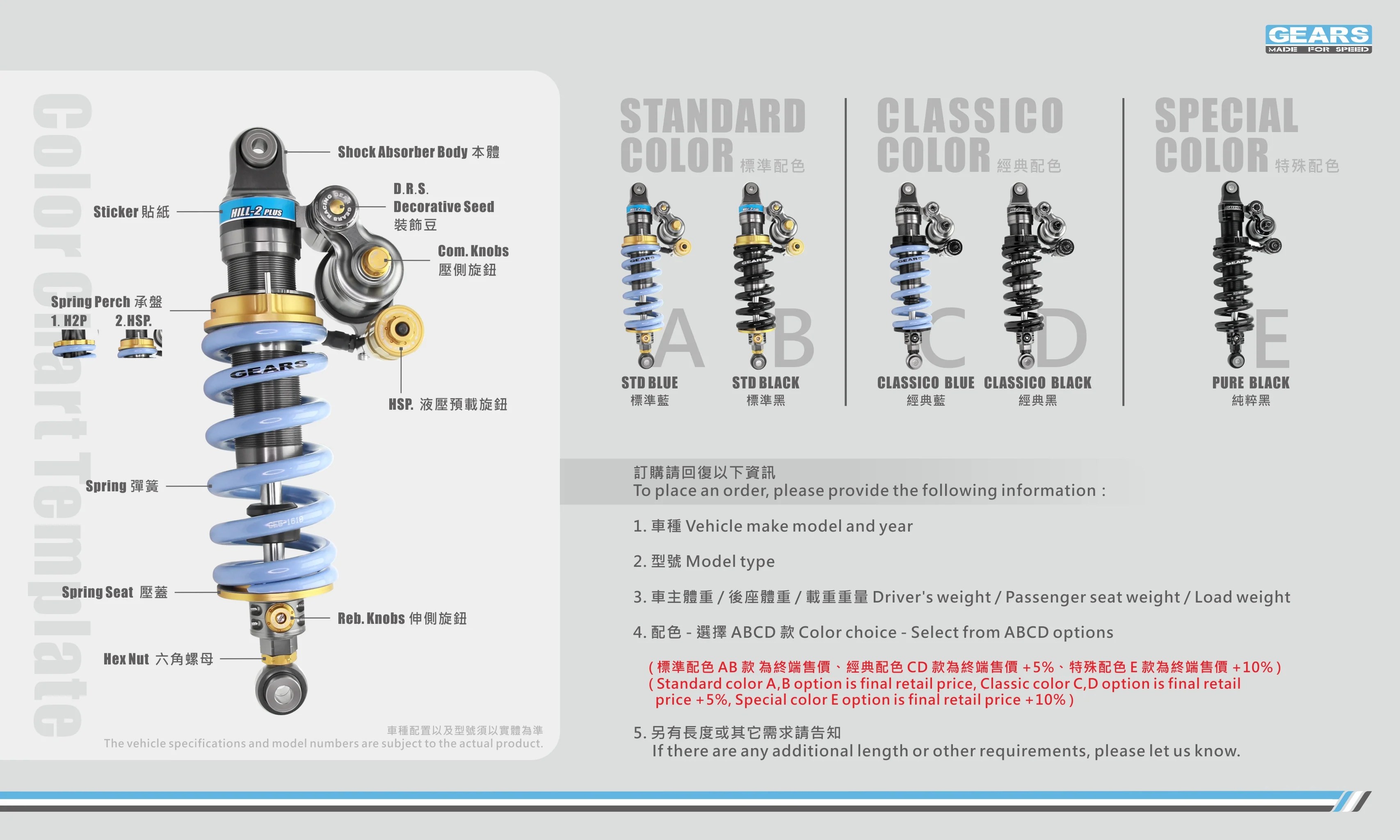

Standard Colors : Standard Blue / Standard Black (general terminal prices)
Classico Colors : Classico Blue / Classico Black (terminal prices +5%)
Special Colors : Pure Black (terminal prices +10%)

* Installation fee is not included.
